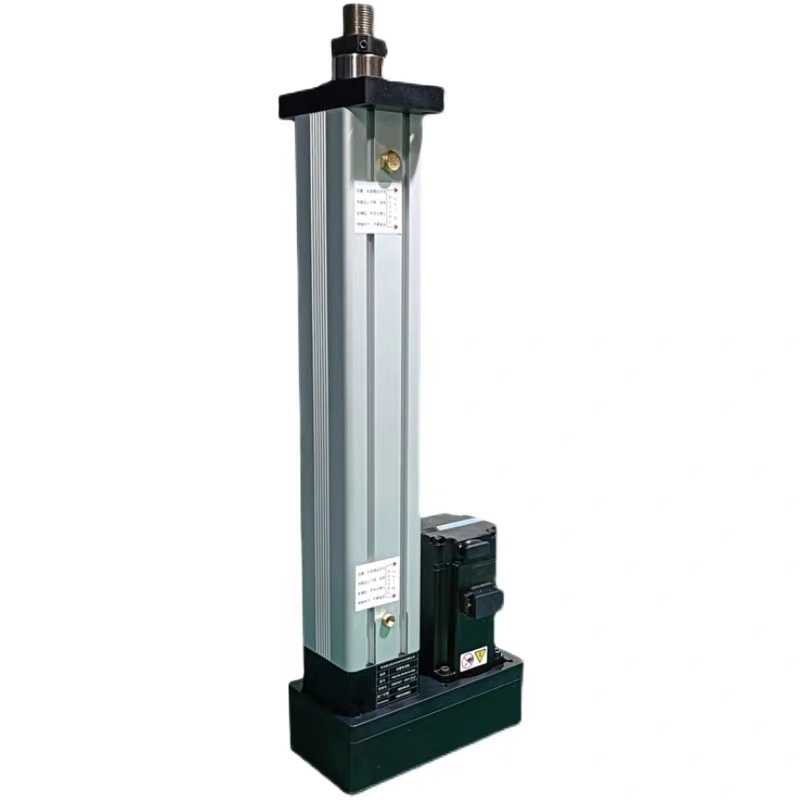

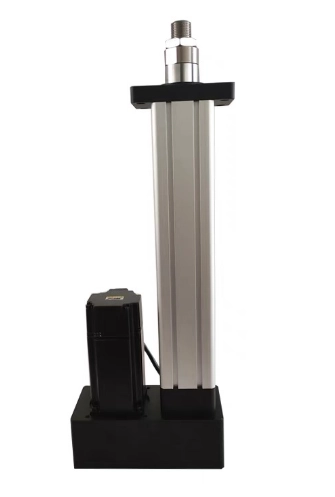

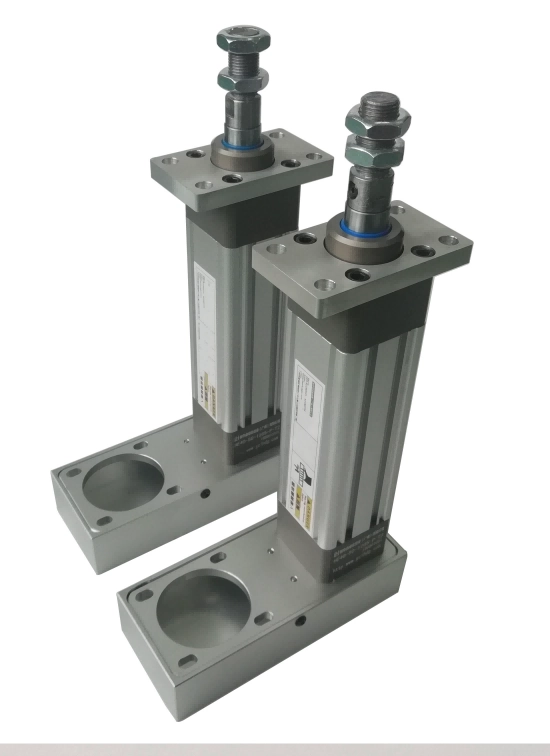

Standard 50 electric cylinder in direct connection with guide post

1.Connection method is optional, fisheye Y joint: shell forged aluminum alloy, smooth treatment, beautiful and generous, telescopic rod: high alloy steel, corrosion resistance .

2. With guide rod, imported accessories: the screw adopts TBI accuracy of 0.01MM, low noise and more lubrication.

3. Special press, ultra-high precision: with pressure sensor, adjustable stroke pressure, stable operation.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product details:

1.304 stainless steel thread, provide a variety of installation methods

2. Limit switch card slot, control cylinder back to the origin

3. Oil injection hole: add well before leaving the factory, simple maintenance

4. Reducer: can be matched with servo motor reducer

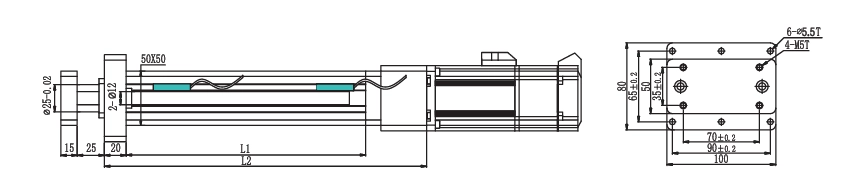

Standard 50 electric cylinder in direct connection with guide post.png

Technical parameter

name	unit	50 cylinder direct link with guide post
Servo motor power	(KW)	0.2
Rated speed of servo motor	(r/min)	3000
Rated torque of servo motor	(N.m)	0.64
Lead of the screw	(mm)	5		10
Ball screw diameter	(∅)	12
Rated dynamic load of lead screw	Kgf	661
Matching planetary deceleration ratio				3:1
Rated thrust of electric cylinder	(KN)	0.68		1
Rated speed of electric cylinder	(mm/s	250		167
Electric cylinder stroke	(mm)	100	200	100	200
Cylinder Length (L1)	(mm)	170	280	170	280
Electric cylinder Length (L2)	(mm)	246	356	246	356
remark	The 50 cylinder series can travel up to 400MM
