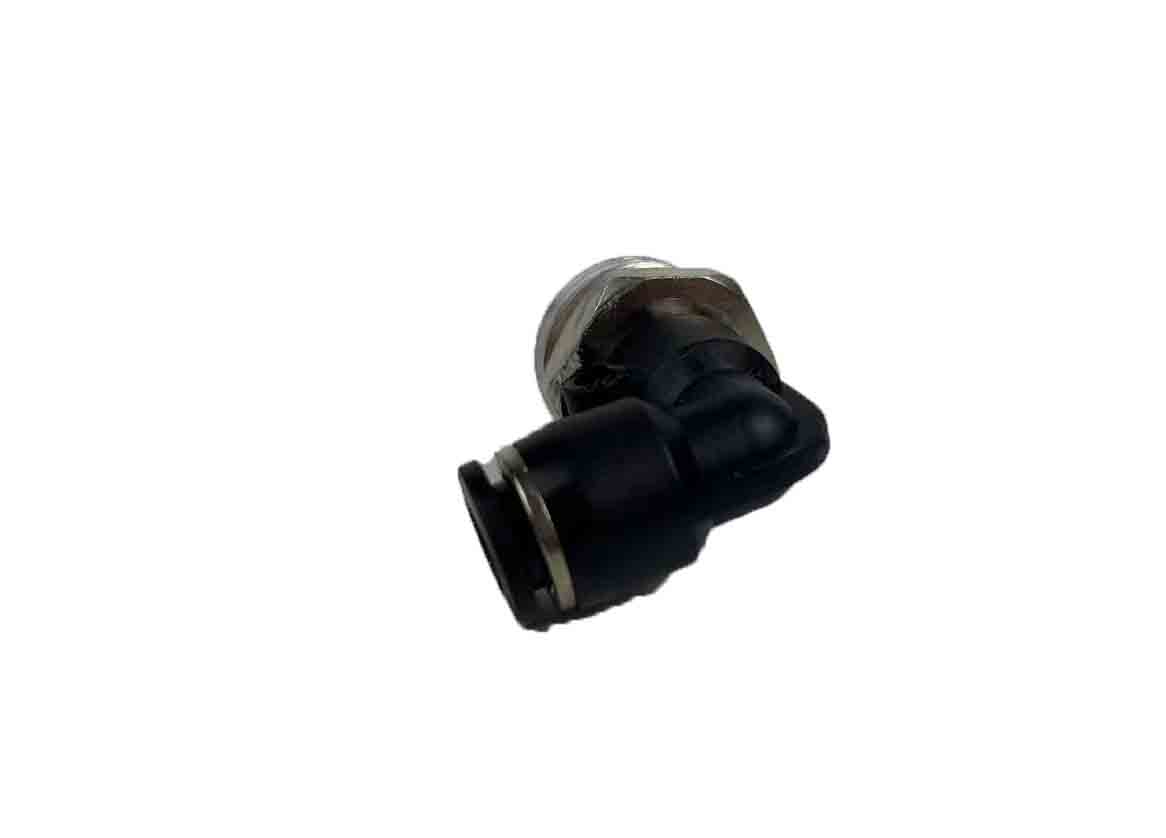

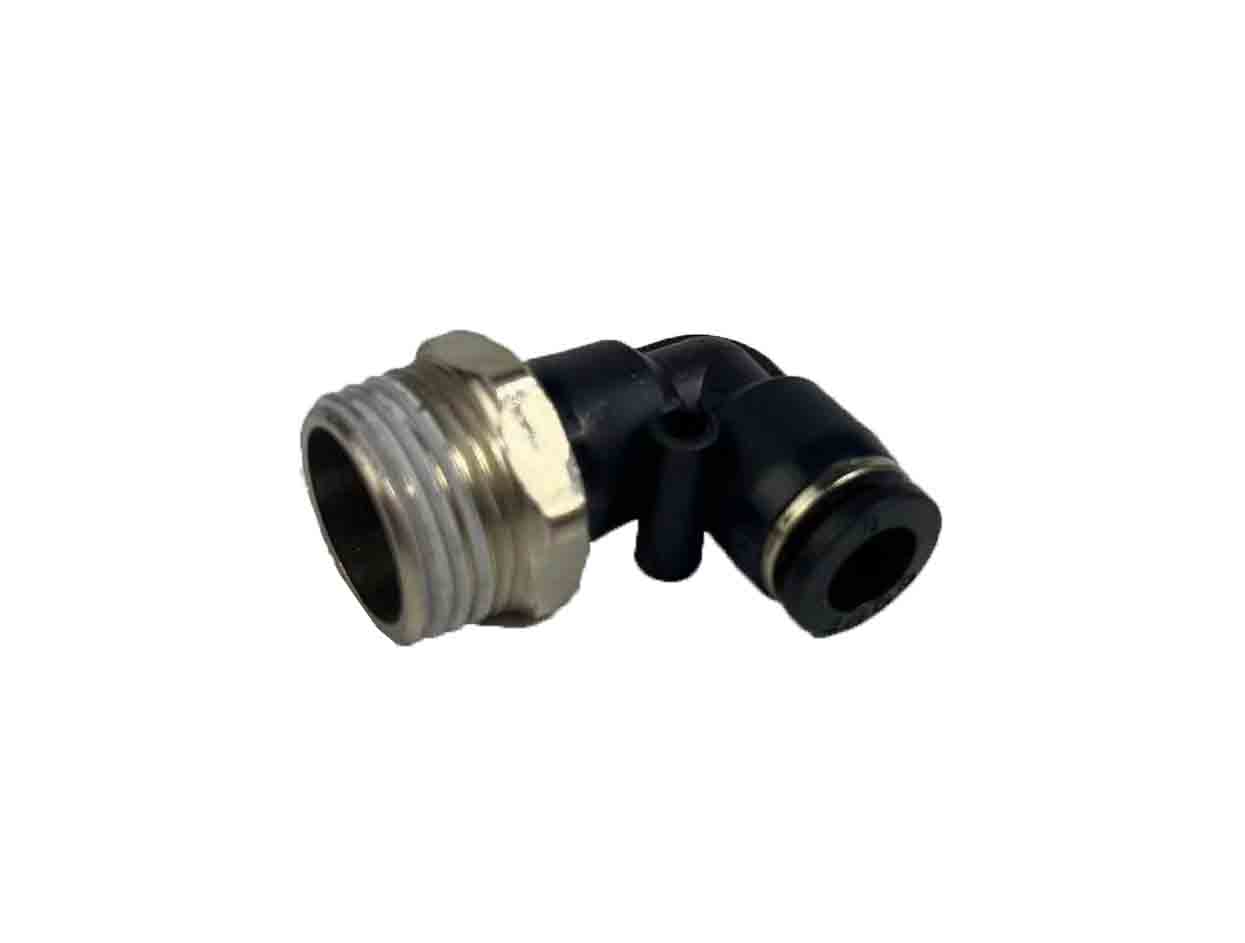

Pneumatic accessories PL series

1.The compact appearance space saving.

2.The threaded portion is covered with sealantand the M3/M5 thread is attached with a

sealing gasket to prevent air leakage over theconnection thread portion.

3.Grey and black are optional for the release button.


Contact Now E-Mail Telephone WhatsApp
Product Details

product details

The PL series is a series of pneumatic accessories, including gas pipe fittings, quick threaded elbows, quick connecting cylinders, etc. These accessories are quick to install and easy to use, and are suitable for a wide variety of pneumatic equipment and systems. For example, the PL series has L-threaded two-way pipe joint PL802, which is usually used to connect pneumatic hoses, and its design structure can effectively prevent the hose from falling off and ensure the stable flow of gas. In addition, the PL series includes other types of pneumatic fittings such as one-touch tees and single-touch air hose fittings. When in use, the appropriate accessories can be selected according to the specific application needs.

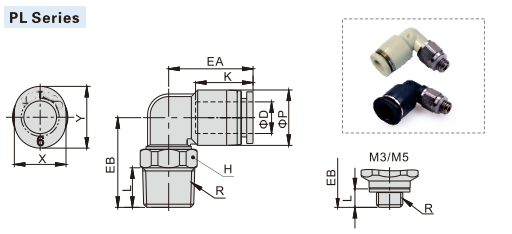

pneumatic accessories PL series   External specification

Pneumatic accessories PL series.png



Model\ltem

φD

R

φP

L

K

EA

EB

H

X

Y

Weight(g

PL3.2M3-M

3.2

M3×0.5

7.5

3

12

14.5

14

7

6.8

8.7

2.4

PL3.2M5-M

M5×0.8

3.5

12

14.5

7

6.8

8.7

2.7

PL4M3-M

4

M3×0.5

8.5

3

12.5

15

14

7

7.8

9.5

3.0

PL4M5-M

M5×0.8

3.5

12.5

14.5

7

7.8

9.5

3.3

PL401-M

1/8”

7.5

12.5

16

10

7.8

9.5

6.2

PL6M5-M

6

M5X0.8

10.5

3.5

13.5

16.0

15.5

7

9.8

11.7

4.0

PL601-M

1/8”

7.5

13.5

16.5

10

9.8

11.7

6.8
