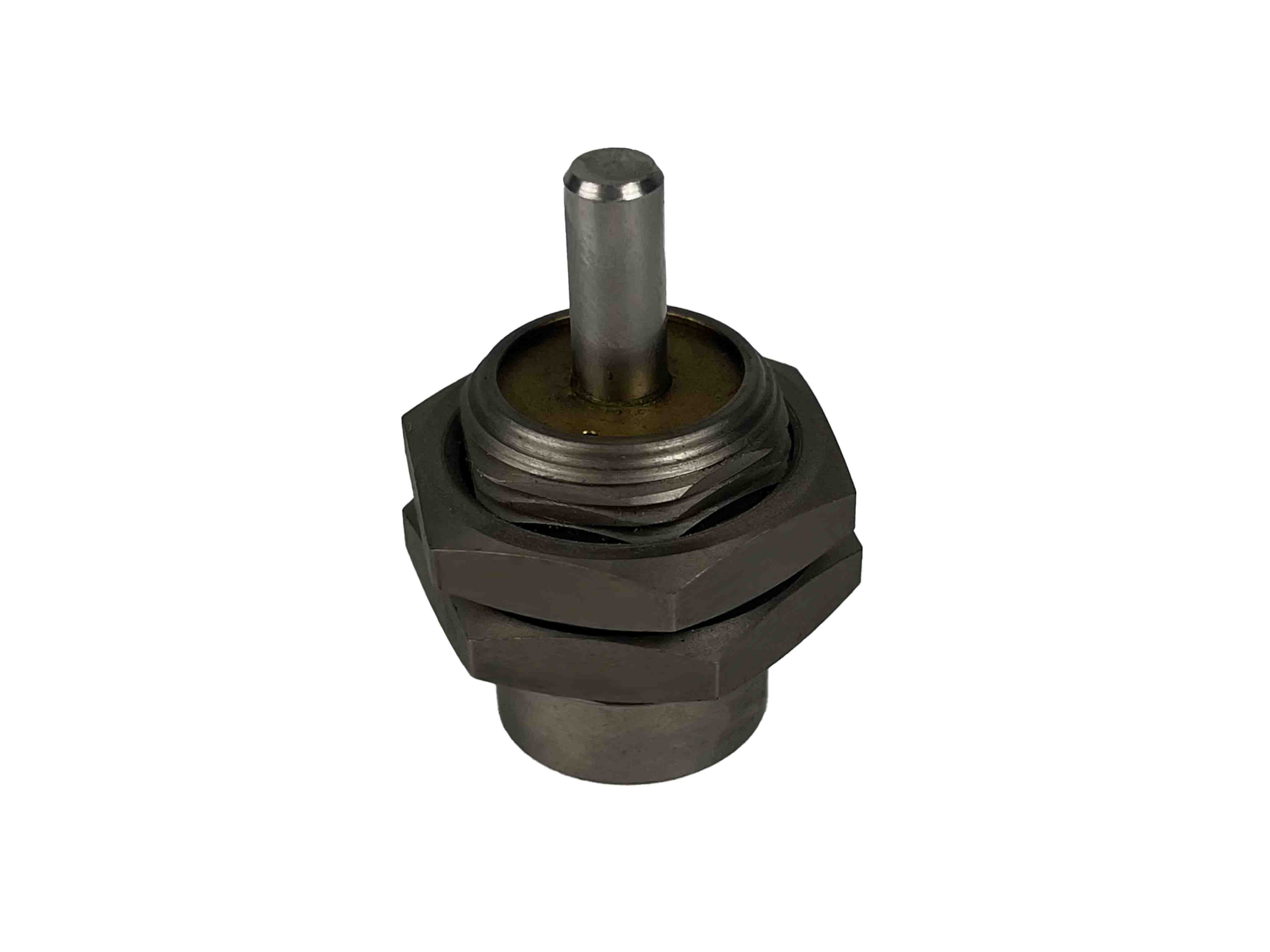

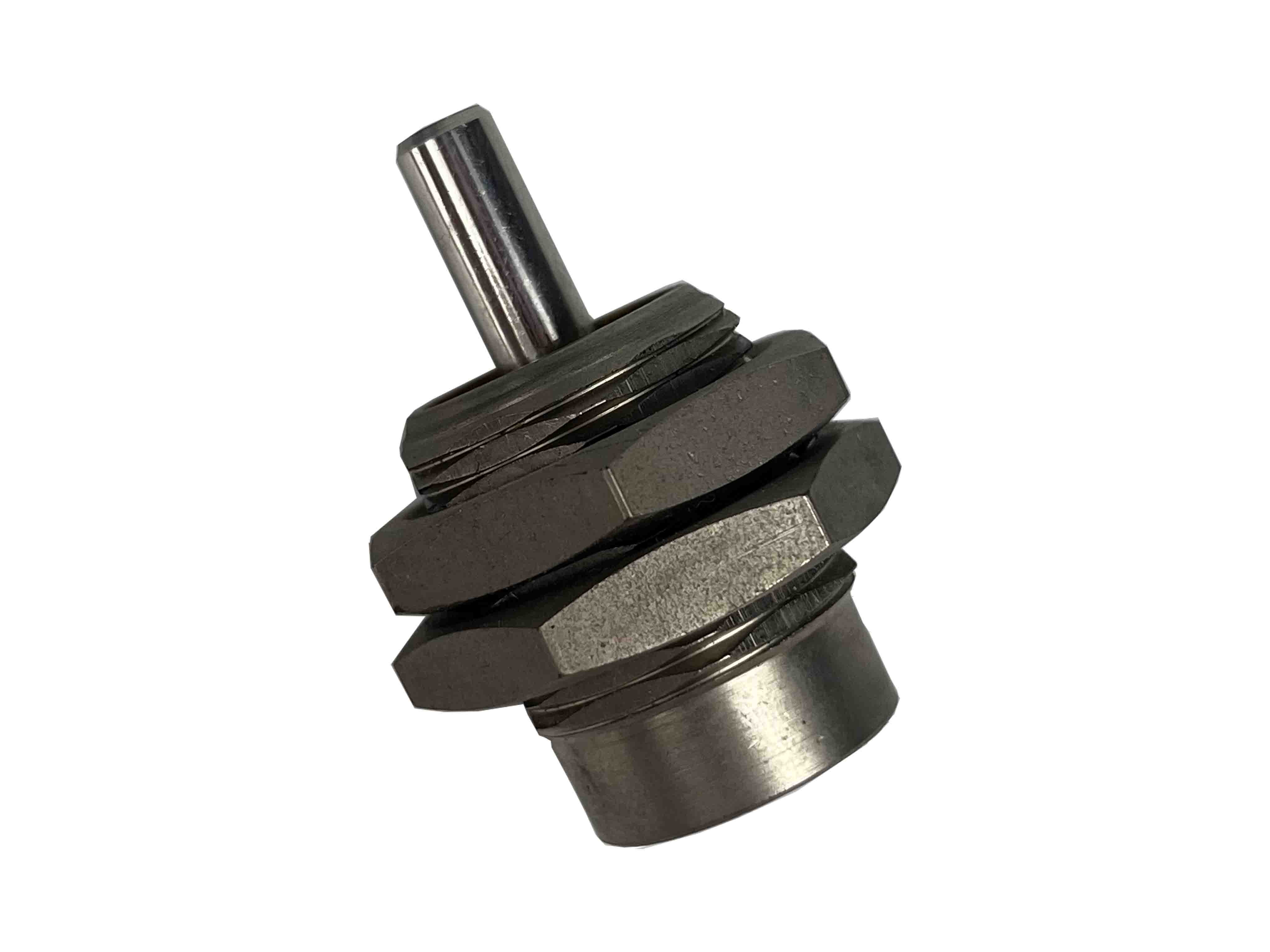

MPE Series threaded Cylinder

MPE Series Threaded Cylinder Product Advantages

1、Two kinds of rod type：Male thread，Male thread；

2、Multi-type cylinder：MPE: Standard type (single acting-push)，MPEF:Embedded type (single acting-push)；

3、Two kinds of mounting type：With mounting bracket (used for MPE type)，Embedded mounting (used for MPEF type)；

4、Five bore size are available：Bore size:6,8,10,12,16。

Contact Now E-Mail Telephone WhatsApp

Product Details

MPE Series Threaded Cylinder product details

The MPE series of threaded cylinders are compact, small and lightweight, thus saving space. The design is flexible and can be integrated with multiple cylinders without the need to install accessories, making the installation process easier. In addition, the MPE series of threaded cylinders are available in a variety of diameters to meet the needs of different applications.

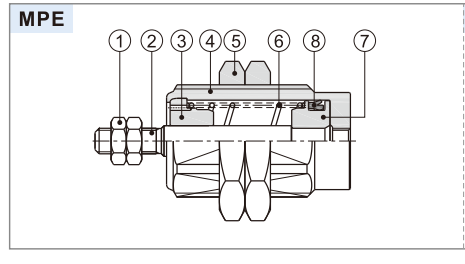

MPE Series Threaded Cylinder interior structure

MPE Series threaded Cylinder.png

NO.	Item	Material
1	Rod nut	Stainless steel
2	Piston rod	Stainless steel
3	Front cover	Brass
4	Body	Brass (nickel-plated)
5	Body nut	Carbon steel
6	Spring	Spring steel
7	Piston	Stainless steel
8	Piston sea	NBR
9	O-ring	NBR

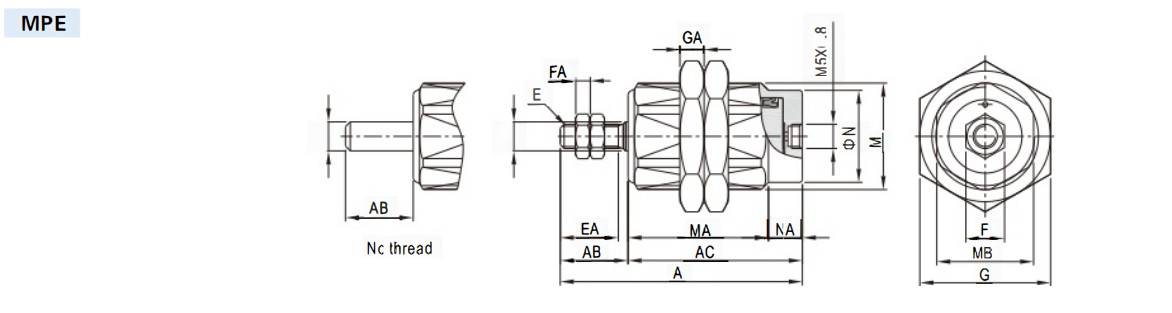

MPE Series Threaded Cylinder reference spec

MPE Series threaded Cylinder.png

Bore size\ltem	A			AB	AC			MA			D	E	EA	F	FA	G	GA	M	MB	N	NA
Stroke	5St	10St	15St	AB	5St	10St	15St	5St	10St	15St	D	E	EA	F	FA	G	GA	M	MB	N	NA
6	30.5	37.5	44.5	9	21.5	28.5	35.5	15.5	225	29.5	3	M3×0.5	7	5.5	2.4	14	4	M10×1.0	9	8.5	6
8	34.5	41.5	48.5	12	22.5	29.5	36.5	16.5	23.5	30.5	4	M4x0.7	10	7	3	17	4	M12x1.0	11	10	6
10	35	42	49	12	23	30	37	17	24	31	5	M4×0.7	10	7	3	19	4	M16×1.5	14	12	6
12	37.5	43.5	49.5	12	25.5	31.5	37.5	19.5	25.5	31.5	6	M5×0.8	10	8	3	24	5	M18×1.5	16	15	6
16	40.5	46.5	52.5	14	26.5	32.5	38.5	19.5	25.5	31.5	6	M5×0.8	12	8	3	27	5	M22×1.5	20	19	7
