1.Standard cylinder manufactured by means of our enterprise:Bore size:32,40,50,63,80,100
2.Convenient and quick restoration sensor switch:Sensor swap can be immediately constant on the cylinder,which is handy and fast.the counterpart sensor swap kind is: CMSG、DMSG、EMSG
3.Tie-rod cylinder:The cylinder barrel and front/rear cap is jointed by means of tie rods with excessive reliability.
4.Adjustable air buffer:With adjustable air buffer on the the front and again cover
5.Four sorts of cylinder joints
6.Multi-type cylinder
1, dedicated to hinge drilling cylinder
2, with grooves with oil storage function, high efficiency and energy saving, excellent performance
3, the use of safety, manufacturers direct sales quality assurance
4, fine workmanship, stronger impact, high strength piston rod
5, smooth sliding, cylinder body full hard oxidation treatment

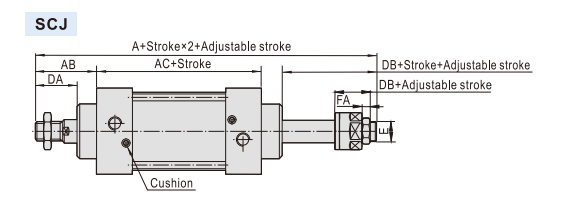

SCJ standard cylinder external reference spec
Bore size\ltem | A(SCD) | A(SCJ) | AB | AC | DA | DB | E | FA | |
32 | 187 | 182 | 47 | 93 | 32 | 27 | M10X1.25 | 6 | |
40 | 191 | 185 | 49 | 93 | 34 | 28 | M12X1.25 | 7 | |
50 | 207 | 194 | 57 | 93 | 42 | 29 | M16X1.5 | 8 | |
63 | 210 | 197 | 57 | 96 | 42 | 29 | M16X1.5 | 8 | |
80 | 257 | 238.5 | 75 | 107 | 54 | 35.5 | M20X1.5 | 10 | |
100 | 263 | 244.5 | 75 | 113 | 54 | 35.5 | M20X1.5 | 10 | |
Remark: | |||||||||
1.The dimensions of magnet type cylinder are the same as non-magnet type cylinder. |
