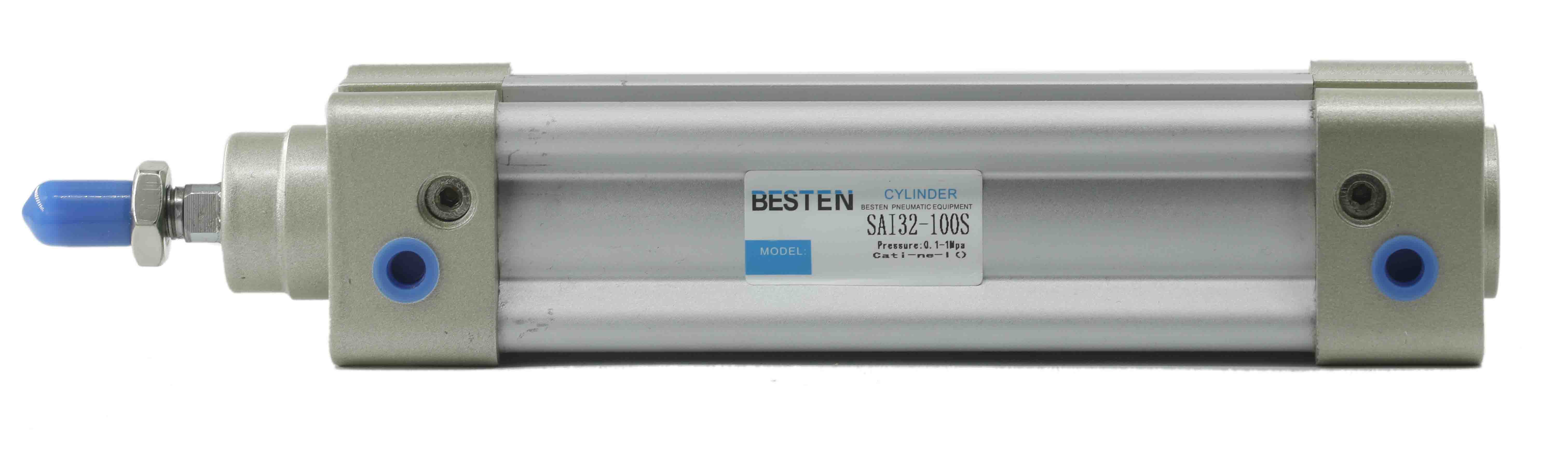

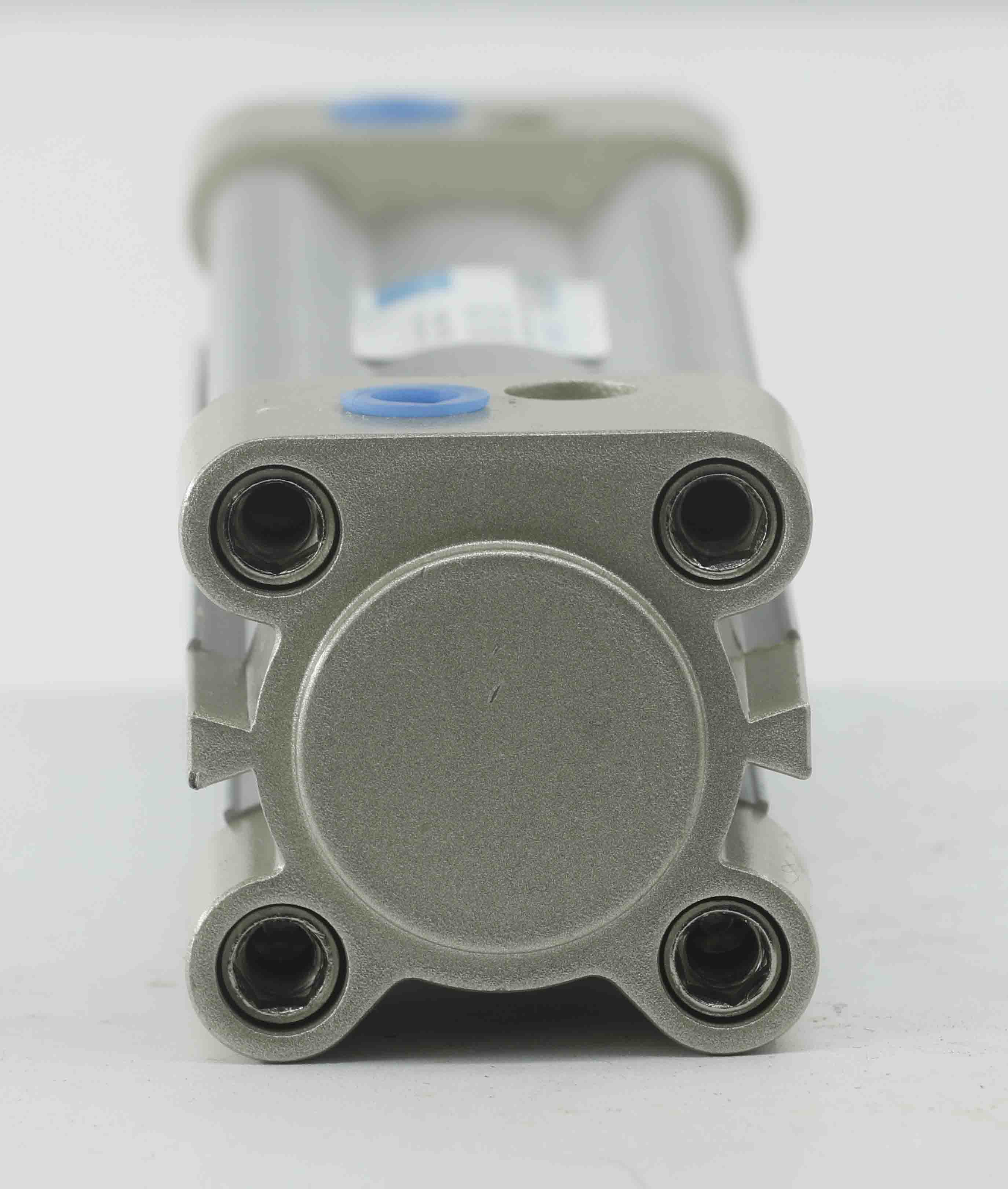

SAI Standard Cylinder

1. SAI standard cylinder;

2. The piston seal adopts two Y-shaped one-way seal structures, which have compensation function, long life and low starting pressure;

3. Aluminum tube rice shape, no tie rod, good anti-corrosion performance;

4. Cylinder cushioning adjustment is stable;

5. A variety of specifications of cylinders and cylinder installation accessories can be selected for customers;


Contact Now E-Mail Telephone WhatsApp
Product Details

SAI standard cylinde Product details

1. Bore size:32,40,50,63,80 100,125,160,20;

2. Adjustable air buffer:With adjustable air buffer on the front and back cover;

3. Extruded body with switch groove:With switch groove on the two sides of body,  the counterpart sensor switch type is: CMSE\DMSE;

4. Four kinds of cylinder joints:I Knuckle、  Y Knuckle、 Floating Joint、 Universal Join;

5. Multi-mounting accessories:LB\FA\FB\CA\CB\CR\FTC\TCM1\TCM2\TC.

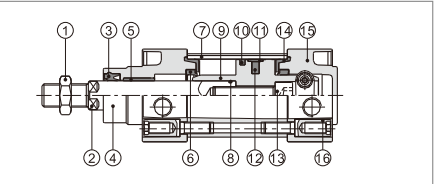

Standard cylinder——SAl Series interior structure

SAI Standard Cylinder.png



 NO.

Item

Material

 1

Rod nut

Carbon steellStainless steel

 2

Piston rod

Carbon steel with 20μm chrome plated
or Stainless steel

 3

Front cover packing

TPU

 4

Front cover

Aluminum alloy

 5

Bushing

Wear resistant material

 6

Cushing O-ring

TPU

 7

Barrel

Aluminum alloy

 8

O-ring

NBR

 9

Piston

Aluminum alloy

 10

Piston Seal

NBR

 11

Wear ring

Wear resistant material

 12

Magnet

Plastic(φ100 and below)\Rubber(Others)

 13

Bolt

Carbon steel

 14

Buffer gasket

TPU

 15

Back cover

Aluminum alloy

 16

Screw

Carbon steel\Stainless steel

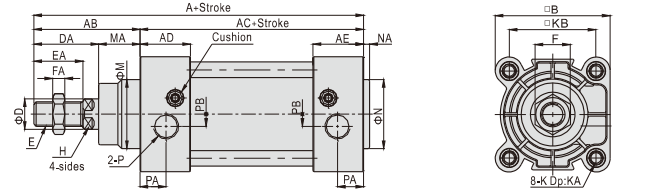

Standard cylinder——SAlSeries External specification

SAI Standard Cylinder.png


Bore size\ltem

A

AB

AC

AD

AE

B

D

DA

E

EA

F

FA

M

MA

H

K

KA

KB

N

NA

  P

PA

PB

32

142

48

94

27.5

27.5

47

12

29

M10×1.25

22

17

6

30

19

10

M6

16

32.5

30

3

1/8"

13

5.5

40

159

54

105

32

32

53

16

33

M12×1.25

24

17

7

35

21

13

M6

17

38

35

3.5

1/4"

17

6

50

175

69

106

31

31

65

20

42

M16×1.5

32

23

8

40

27

17

M8

17

46.5

40

3.5

1/4"

15.5

7.5

63

190

69

121

33

33

75

20

42

M16×1.5

32

23

8

45

27

17

M8

17

56.5

45

4

3/8"

16.5

7.5

80

214

86

128

33

33

95

25

53

M20×1.5

40

26

10

45

33

22

M10

19

72

45

4

3/8"

16.5

9

100

229

91

138

37

37

115

25

55

M20×1.5

40

26

10

55

36

22

M10

19

89

55

4

1/2"

18.5

9.5

125

279

119

160

46

46

140

32

74

M27×2.0

54

41

13.5

60

45

27

M12

22

110

60

4

1/2"

23

14

160

332

152

180

50

50

180

40

94

M36×2.0

72

55

18

65

58

36

M16

30

140

65

4

3/4"

25

15

200

347

167

180

50

50

220

40

100

M36×2.0

72

55

18

75

67

36

M16

30

175

75

5

3/4"

25

15

Remark:The dimensions of magnet type cylinder are the same as non-magnet type cylinder.
