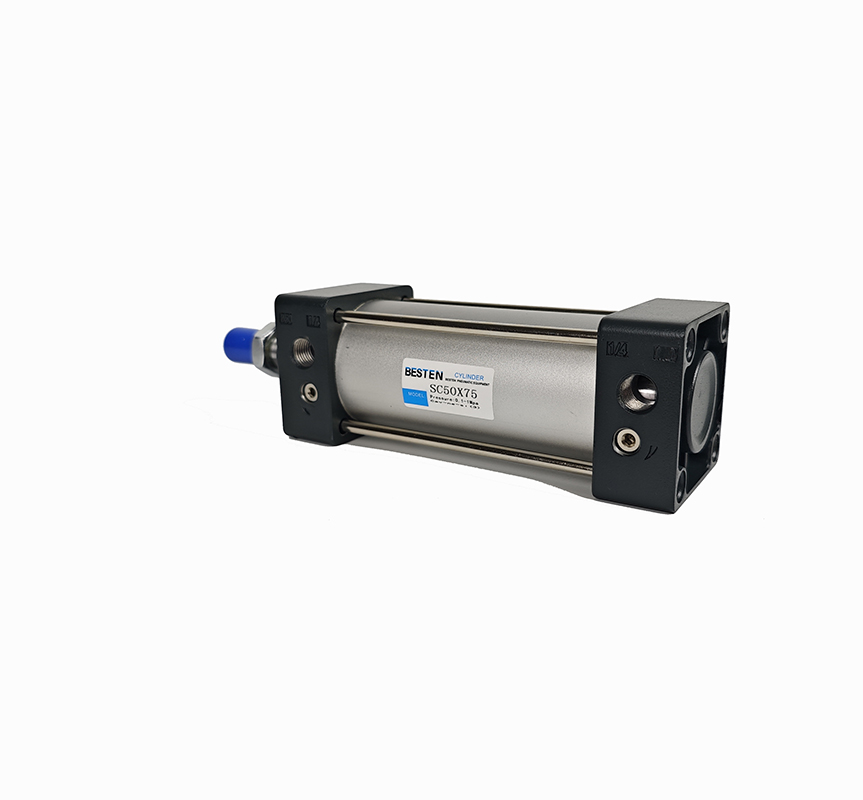

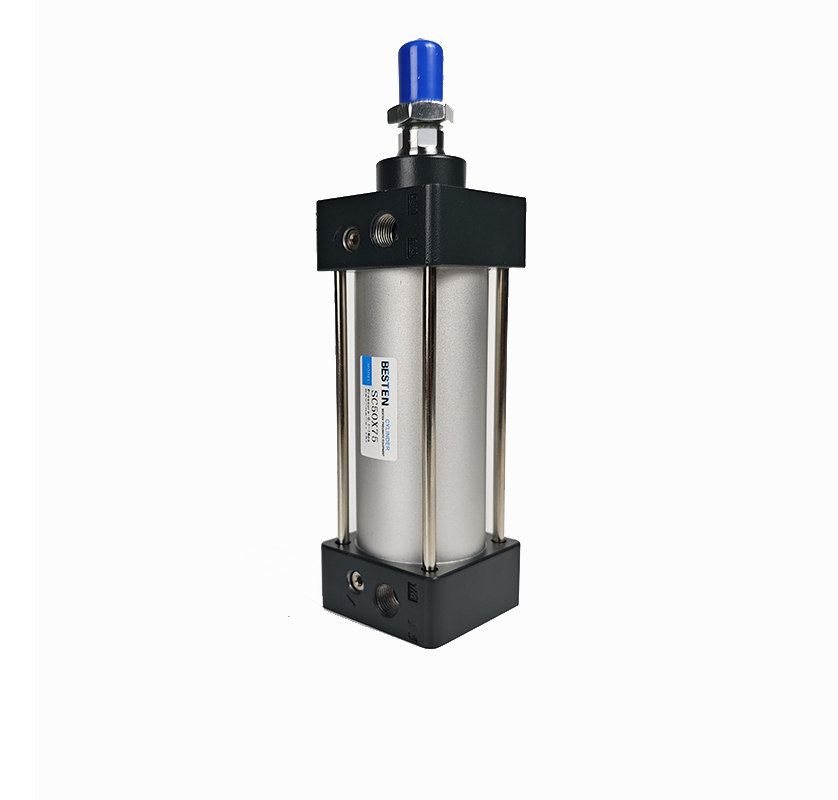

1. SC standard cylinder is the market standard cylinder;
2. The seal adopts special-shaped two-way sealing structure, compact size, and self-lubricating function of oil removal;
3. For tie rod cylinder, the front and rear cover and cylinder barrel are connected with tie rod pillars, which is stable and reliable;
4. In line with ISO15552 design standards;
5. The cylinder cushioning can be adjusted, stable and smooth;
6. A variety of specifications of cylinders and their accessories are available for customers to choose
SC series cylinders Product details
1. Choose high-temperature sealing materials to ensure that the cylinder works normally under 150°C conditions;
2. When the load changes during work, a cylinder with sufficient output force should be selected;
3. The dirt should be cleaned before the cylinder is connected to the pipeline, and the medium used should be filtered by a filter element of more than 40μm to prevent debris from entering the cylinder;
4. Avoid side load as much as possible during the use of the cylinder to maintain the normal work and service life of the cylinder.
SC series cylinders consist of 1. Nut, 2. Piston rod, 3. Front cover O ream, 4. Sleeve, 5. Front end cover, 6. Buffer O ream, 7. Buffer gasket, 8. Cylinder block, 9. Piston, 10. Piston rod O ring, 11. Piston O ring, 13. Wear ring, 14. Hex bolt, 15. Back cover, 16. Pillar, 17. Pillar nut composition.
cylinder bore\ symbol | A | AB | AC | AD | AE | B | D | DA | E |
32 | 140 | 47 | 93 | 27.5 | 27.5 | 45 | 12 | 32 | M10×1.25 |
40 | 142 | 49 | 93 | 27.5 | 27.5 | 50 | 16 | 34 | M12×1.25 |
50 | 150 | 57 | 93 | 27.5 | 27.5 | 62 | 20 | 42 | M16×1.5 |
63 | 153 | 57 | 96 | 27.5 | 27.5 | 75 | 20 | 42 | M16×1.5 |
80 | 182 | 75 | 107 | 33 | 33 | 94 | 25 | 54 | M20×1.5 |
100 | 188 | 75 | 113 | 33 | 33 | 112 | 25 | 54 | M20×1.5 |
EA | F | FA | H | K | KA | KB | M | MA | P | PA | PB |
22 | 17 | 6 | 10 | M6×1.0 | 14.5 | 33 | 28 | 15 | PT1/8 | 14 | 5.5 |
24 | 17 | 7 | 13 | M6×1.0 | 14.5 | 37 | 32 | 15 | PT1/4 | 15 | 6 |
32 | 23 | 8 | 17 | M6×1.0 | 14.5 | 47 | 38 | 15 | PT1/4 | 17 | 8.5 |
32 | 23 | 8 | 17 | M8×1.25 | 14.5 | 56 | 38 | 15 | PT3/8 | 15 | 9.5 |
40 | 26 | 10 | 22 | M10×1.5 | 17 | 70 | 47 | 21 | PT3/8 | 19.5 | 10 |
40 | 26 | 10 | 22 | M10×1.5 | 17 | 84 | 47 | 21 | PT1/2 | 16.5 | 11 |
