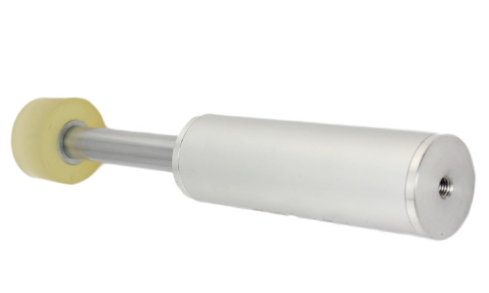

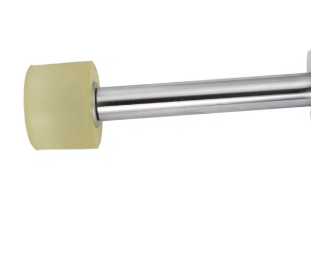

Cylinder with pressure head

1. Compact structure: Cylinders with indenters are typically small in size and light in weight, which makes them particularly valuable in space-constrained applications.

2. Diverse installation methods: Due to its square cylinder design, these cylinders can be directly installed on a variety of fixtures and special equipment without additional accessories, providing flexibility and convenience.
3. Connecting rod design: The output connecting rod with the indenter cylinder is divided into internal and external teeth, which increases the compatibility when connecting with other mechanical parts.
4. Guiding ability: Although some models need to be used with guiding elements, this design can improve cylinder stability and accuracy.

Contact Now E-Mail Telephone WhatsApp

Product Details

1. Save installation space: The dual-shaft cylinder design can parallel two single-rod thin cylinders, which can save installation space and provide greater output.
2. Anti-bending and anti-torsional performance: some cylinder design with pressure head can withstand a certain side load, improving the reliability of the equipment.
3. Easy installation: Part of the cylinder design with pressure head allows to be fixed from four directions, providing users with more installation options.
4. Improved safety: In the design of the new type of cylinder with pressure head, the magnetic switch does not poke out, thus improving operability and safety.
5. Additional functions: Some cylinders with pressure heads are also equipped with additional functions such as cushioning to reduce impact and noise and extend equipment life.
6. Floating joint design: The use of floating joints can absorb the lack of eccentricity or parallelism between the cylinder and the driven body, thereby protecting the cylinder seal ring and extending the life of the driven body.
