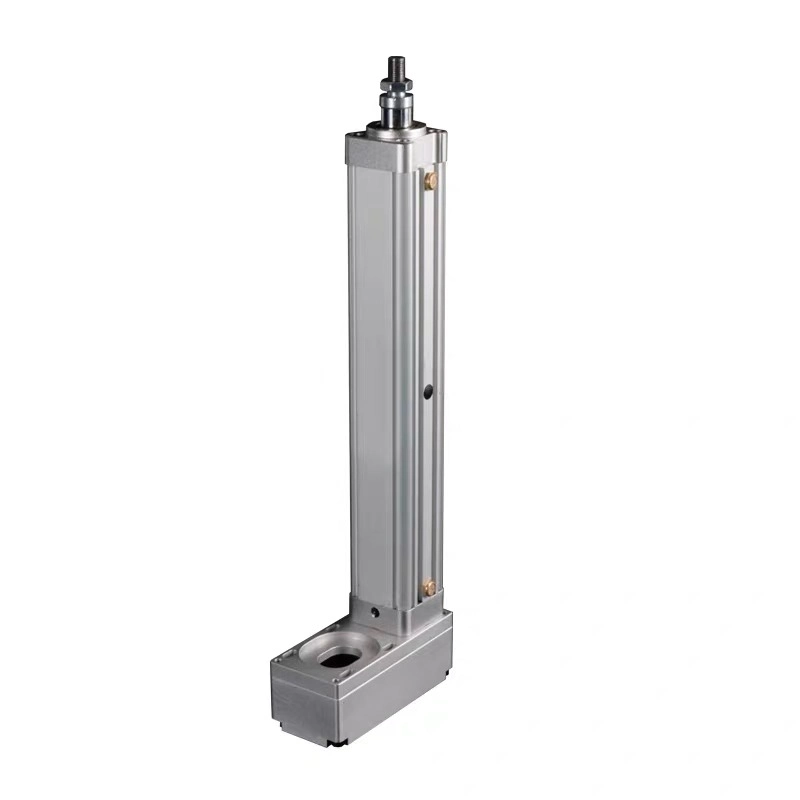

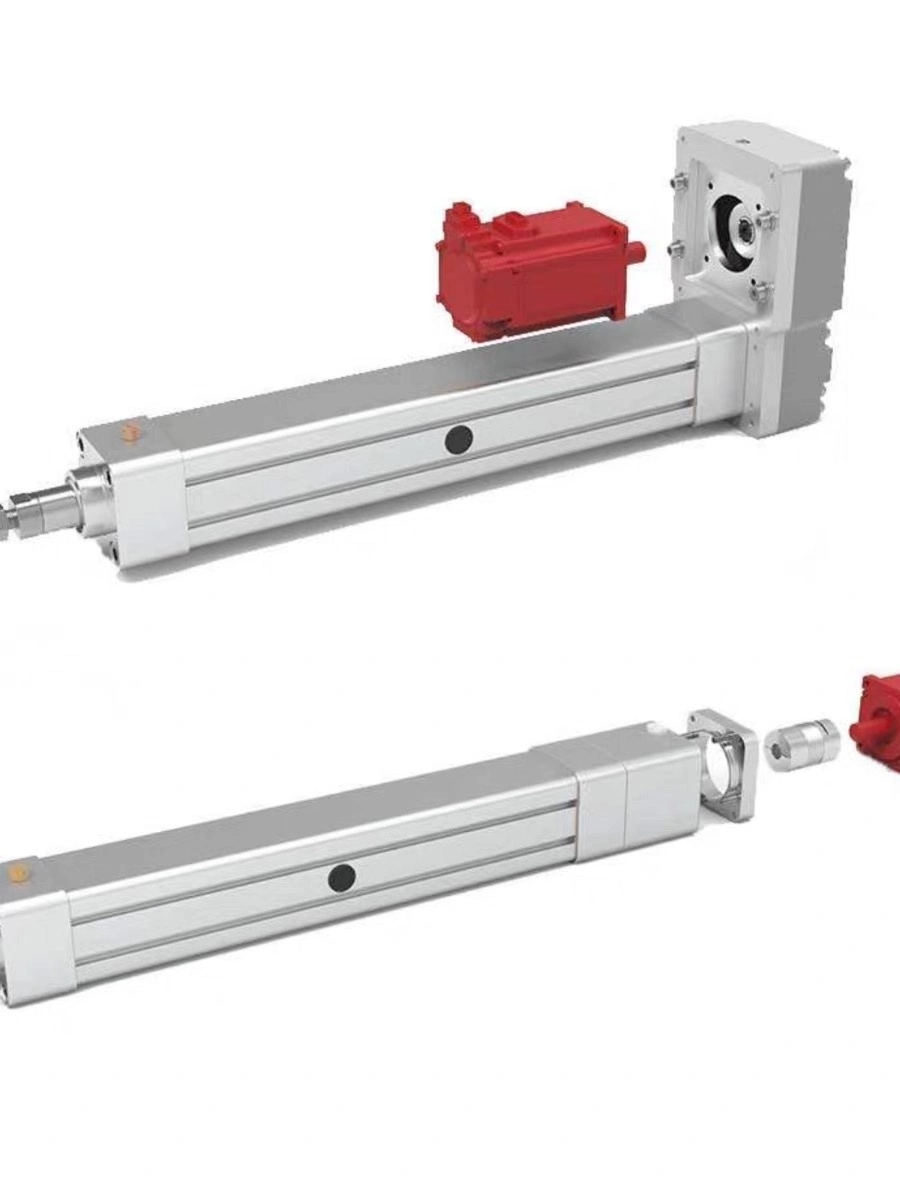

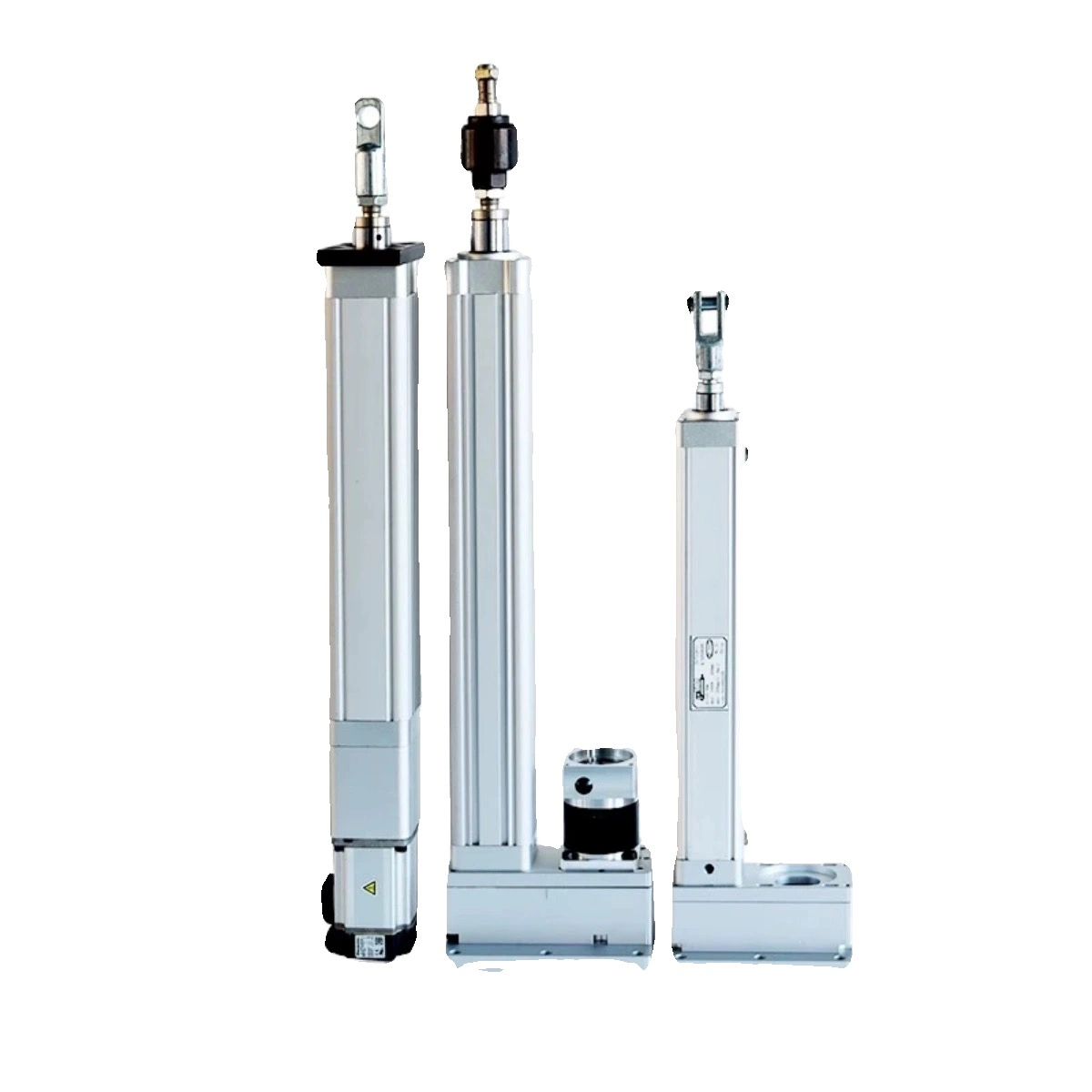

60 direct connection electric cylinder

Product advantages

1.Professional qualification certificate to ensure quality and reliability

2.Original manufacture: hard oxidized valve body, compatible with most equipment in the market

3. Maximum load 2.65 tons: master the core precision technology, three times the performance

Contact Now E-Mail Telephone WhatsApp

Product Details

Product details:

1.Hard oxidation cylinder: high strength, long service life

2.CNC fine tapping screw: international standard, close connection

3. High strength base: tight installation, stable output of electric cylinder

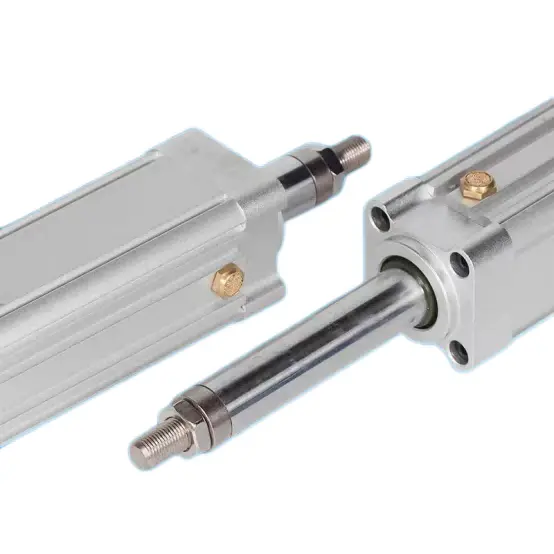

60 direct connection electric cylinder.png

technical specification

name	单位	60 cylinder direct link with guide post
Servo motor power	(KW)	0.4			0.75	0.4					0.75
Rated speed of servo motor	(r/min)	3000			3000	3000					3000
Rated torque of servo motor	(N.m)	1.27			2.39	1.27					2.39
Lead of the screw	mm)	5				10
ball screw diameter	(∅)	16
Rated dynamic load of lead screw	Kgf	1380				1103
Matching planetary deceleration ratio			3:1	4:1			4:1	5:1	7:1	8:1	3:1	4:1
Rated thrust of electric cylinder	(KN)	1.35	4	5.4	2.5	0.67	2.7	3.4	4.7	5.4	3.8	5.1
Rated speed of electric cylinder	(mm/s)	250	83	62.5	250	500	125	100	71.4	62.5	166	125
Electric cylinder stroke	(mm)	100	200	300	100	100	200	300	400	500	100	200
Cylinder Length (L1)	(mm)	190	290	400	190	195	295	405	505	615	195	295
Electric cylinder Length (L2)	(mm)	288	388	498	294	293	393	503	603	713	299	399
remark	The 60-cylinder series can travel up to 800MM; Optional 16, 20 lead screw
