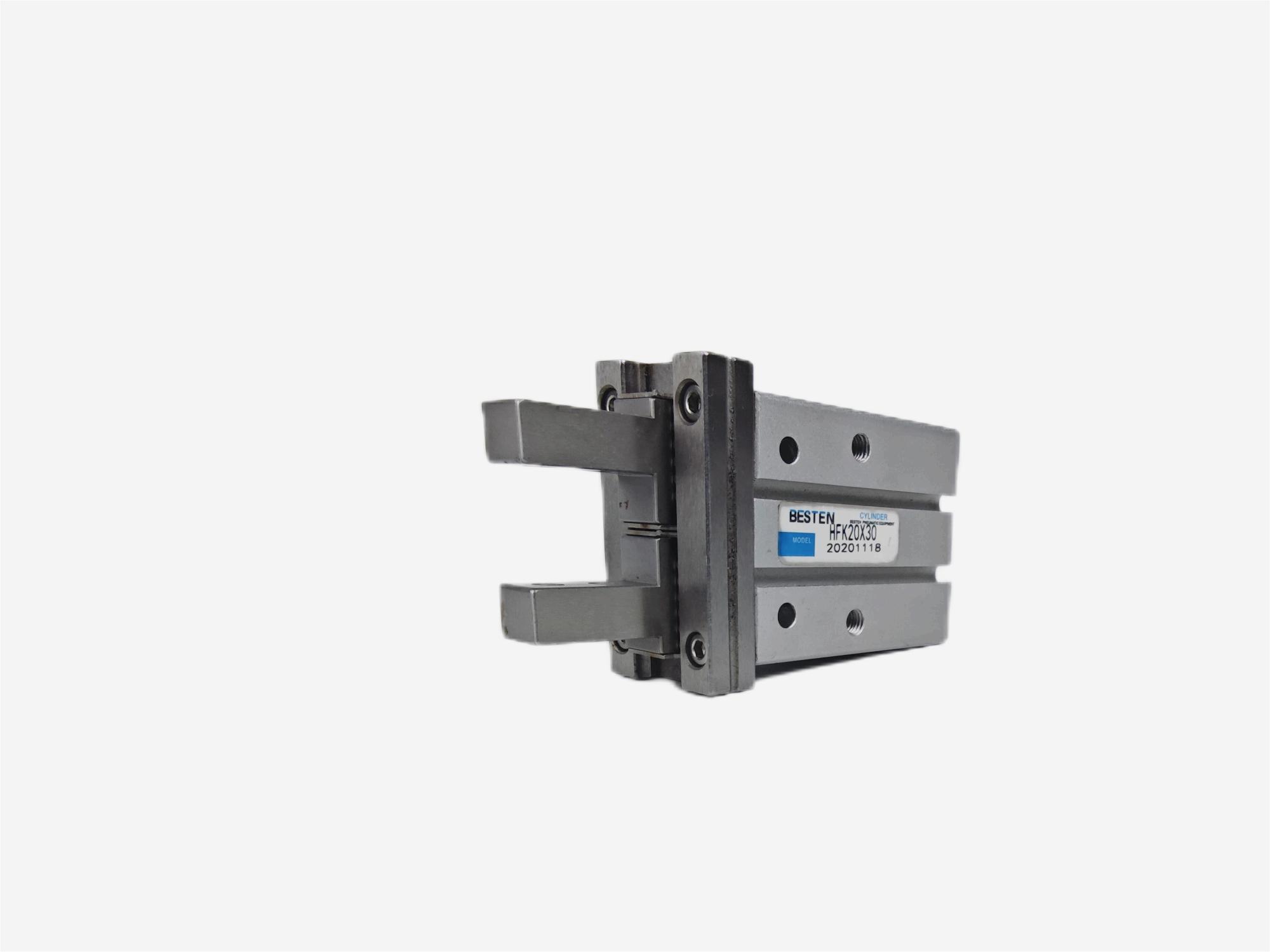

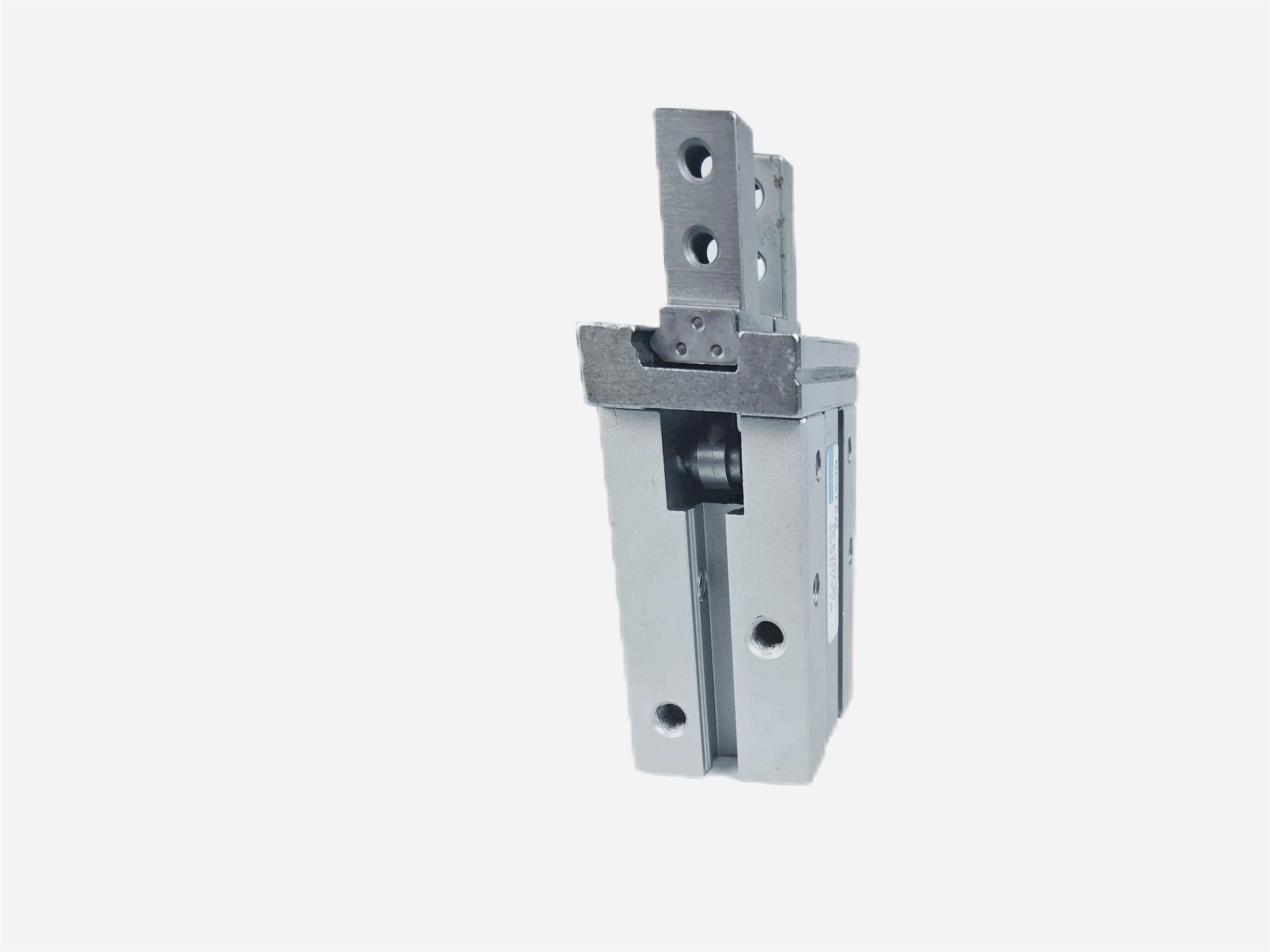

HFK series Air gripper(parallelstyle——roller bearing) Product Advantages
1. Seven kinds of bore size and three kinds of type:Bore size:6,10,16,20,25,32,40,
2. Integrated design of linear guide rail-:Integrated design of inear guide rail, high rigidity and high precision.
3. With positioning pin:A positioning pin is attached to the bottom of the linear guide rail, which can prevent the deviation of the positioning rail and body.
4. With squareness magnetic switch slots:The squareness magnetic switch slots convenient to installDMSG\ICMSG\EMSG type inducting switch.
5. With roundness magnetic switch slots:MSH type inducting switch.
HFK series Air gripper product details
6. according to the actual using requirements of customers, the initial position of clamping jaw can be customized to meet the different needs under different working conditions.
7. Can be mounted from three directions:With mounting holes on the side and tail.
8. With positioning hole:THE positioning hole can improve the can improve the precision and the consistency of reperted dismounting and positing.
HFK series Air gripper(parallelstyle——roller bearing) interior structure
NO | ltem | Material | NO | Ite m | Material |
1 | Pin | Stainless steel | 12 | Pin | Bearing stee |
2 | Pin | Stainless stee | 13 | O-ring | NBR |
3 | Curvec ba | Stainless steel | 14 | Q-ring | NBR |
4 | Piston rod | Aluminum alloy/Stainless steel | 15 | Magnet | Sintered metal(Neodymium-iron-boron |
5 | Body | Aluminum alloy | 16 | C clip | Spring steel |
6 | Piston | Aluminurr alloyrStainless steel | 17 | Bumper | TPU |
7 | Back cover | Brass/Aluminum alloy | 18 | Magnet washer | NBR |
8 | Magnet fixed flake | Aluminur alloy/Stainless steel | 19 | Roc packing | NBR |
9 | Rail | Alloy steel | 20 | Pistor seal | NBR |
10 | Countersink screw | Alloy steel | 21 | Clamping jaw | Bearing steel |
11 | Countersink screw | Alloy steel | 22 | Guide roller | Bearing stee |
HFK series Air gripper(parallelstyle——roller bearing) external reference spec
Model\ltem | A | AB | B | C | CA | DB | E | EA |
HFK10 | 57 | 37.5 | 16.5 | 30 | 23 | 12 | M2.5×0.45 | 3 |
HFK16 | 67.5 | 42.5 | 23.5 | 39 | 30.5 | 15 | M3×0.5 | 4 |
HFK20 | 85 | 53 | 27.5 | 53 | 42 | 20 | M4×0.7 | 5 |
HFK25 | 103 | 64 | 33.5 | 71 | 52 | 25 | M5×0.8 | 6 |
HFK32 | 113(122) | 67(76) | 40 | 106 | 60 | 29 | M6×1.0 | 7 |
HFK40 | 139(152) | 83(96) | 48 | 132 | 72 | 36 | M8×1.25 | 9 |
Model\ltem | EB | K | KA | KB | KC | L | LA | LB | LC | M | MA | MB |
HFK10 | 5.7 | M3×0.5 | 5 | 16 | 23 | M3×0.5 | 6 | 18 | 12 | M3×0.5 | 6 | 11.5 |
HFK16 | 7 | M4×0.7 | 7 | 24 | 24.5 | M4×0.7 | 8 | 22 | 15 | M4×0.7 | 4.5 | 16 |
HFK20 | 9 | M5×0.8 | 8 | 30 | 29 | M5×0.8 | 10 | 32 | 18 | M5×0.8 | 8 | 18.5 |
HFK25 | 12 | M6×1.0 | 10 | 36 | 30 | M6×1.0 | 12 | 40 | 22 | M6×1.0 | 10 | 22 |
HFK32 | 14 | M6×1.0 | 10 | 46 | 40(49 | M6×1.0 | 12 | 46 | 26 | M6×1.0 | 10 | 26 |
HFK40 | 17 | M8×1.25 | 12 | 56 | 49(62 | M8×1.25 | 16 | 56 | 32 | M8×1.25 | 12 | 32 |
Mode/ltem | MC | NA | P | PA | PB | PC | UB(Closed) |
HFK10 | 27 | 1.5 | M3×0.5 | 7 | 19 | 10 | 11.5-9 |
HFK16 | 30 | 1.5 | M5×0.8 | 7.5 | 19 | 13 | 15-9 |
HFK20 | 35 | 2 | M5×0.8 | 9.5 | 23 | 15 | 16.5_9 |
HFK25 | 36.5 | 2 | M5×0.8 | 9 | 24 | 20 | 19.5_9 |
HFK32 | 48(57) | 2.5 | M5×0.8 | 9.5 | 31(40 | 24 | 26-9 |
HFK40 | 58(71) | 2.5 | M5×0.8 | 10.5 | 38(50) | 28 | 30-9 |
