1, hard oxidation, smooth, import seal
2, aluminum alloy cylinder, import seal, smooth expansion
3, exquisite technology, thickening piston riveting process: cylinder work smoothly is not easy to loose, higher precision
1, clear thread, simple installation: surface treatment process, good performance, the use of high-strength raw materials is not easy to break
2, alloy material, military quality: the selection of high-precision material, hardness is not easy to deformation, long service life
3, compact structure, convenient installation: thickened frame base process, more stable, more impact resistance

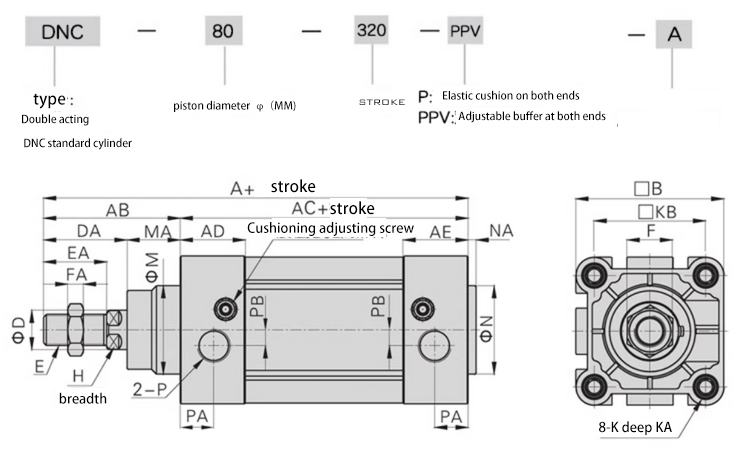

Product Parameter
cylinder bore\Symbols | A | AC | AD | AE | B | D | E | |
32 | 142 | 48 | 94 | 27.5 | 27.5 | 46.5 | 12 | |
40 | 159 | 54 | 105 | 32 | 32 | 54 | 16 | |
50 | 175 | 69 | 106 | 31 | 31 | 64 | 20 | |
63 | 190 | 69 | 121 | 33 | 33 | 75 | 20 | |
80 | 214 | 86 | 128 | 33 | 33 | 93 | 25 | |
100 | 229 | 91 | 138 | 37 | 37 | 110 | 25 | |
125 | 279 | 119 | 160 | 46 | 46 | 134 | 32 |
