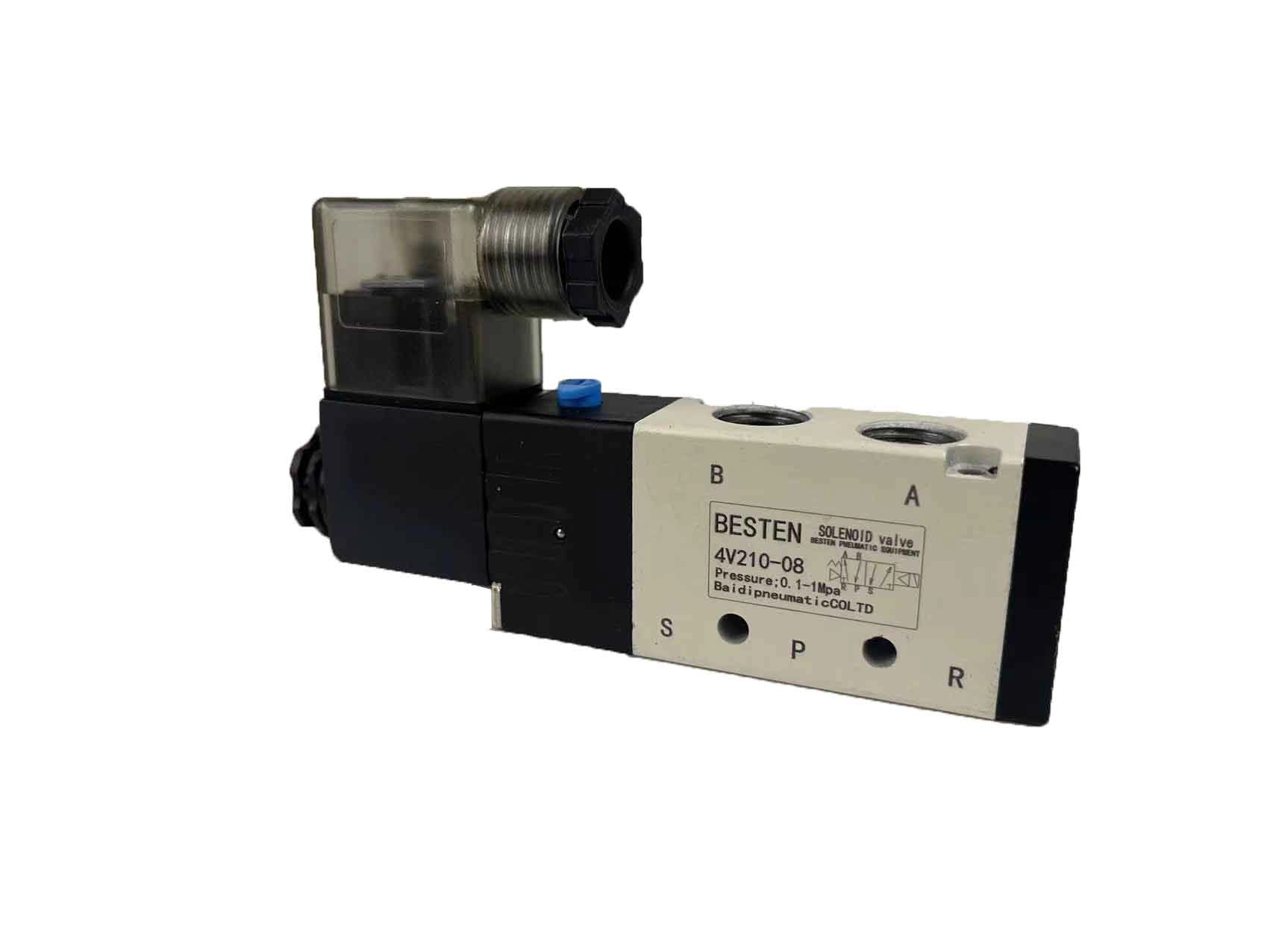

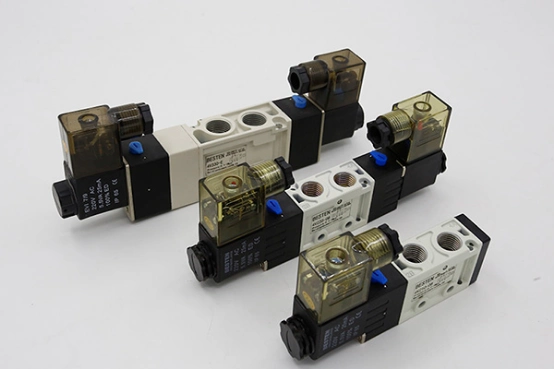

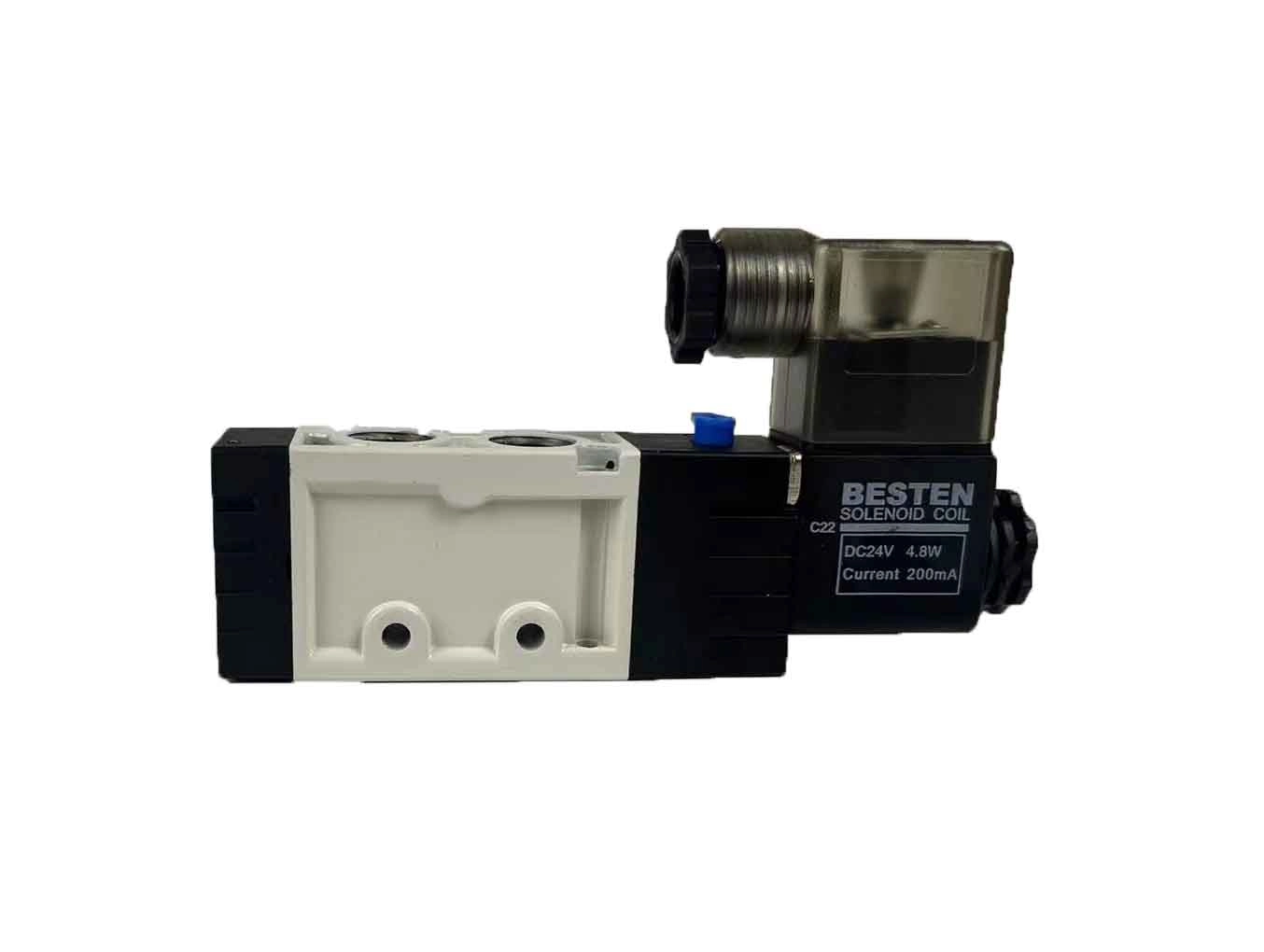

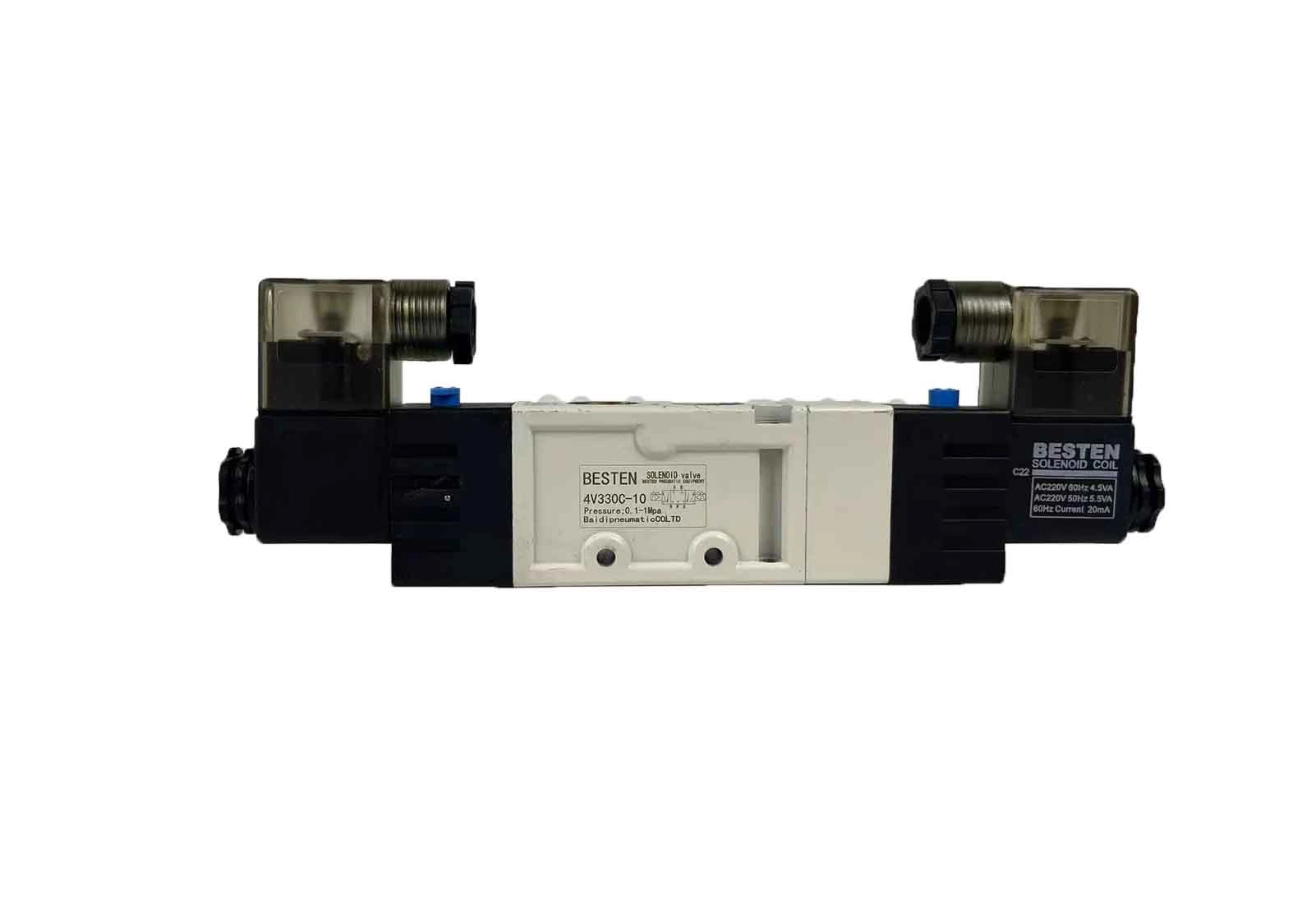

4Vseries Solenoid Valve

product details

1. The inner hole adopts special processing technology, which has low friction resistance, low starting air pressure and long service life;

2. Equipped with manual device, easy to install and debug;

3. The valve body and valve seat can be used in multiple valves to save space;

4. A variety of standard voltage levels are available;

5. When installing, pay attention to whether the gas flow direction and the nozzle tooth shape are correct, and the use of media needs to be filtered through a 40μm filter element;

6. The gas flow direction P is the intake air, A, (B) is the working port, and R and (S) are the exhaust port;

7. When connecting the pipeline, be sure to clean the dust and iron pins in the joint to avoid impurities and foreign matter entering the valve body;

8. When debugging the whole machine, first use manual debugging, and then power on for debugging.

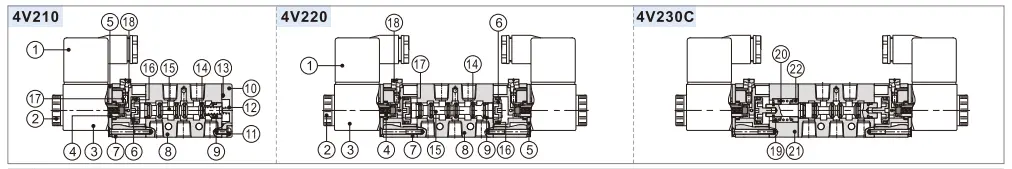

4V200  series Solenoid Valve interior structure

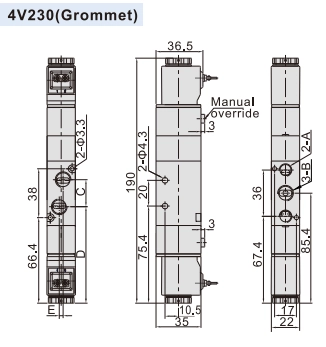

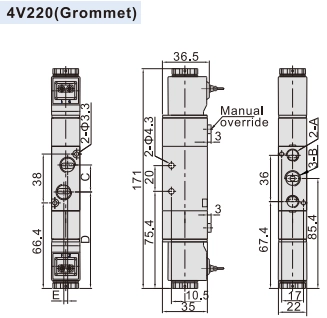

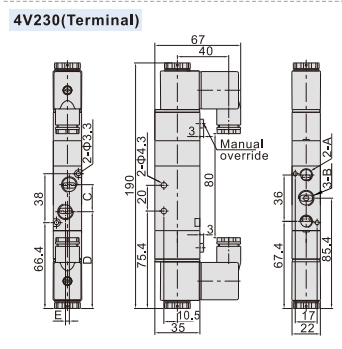

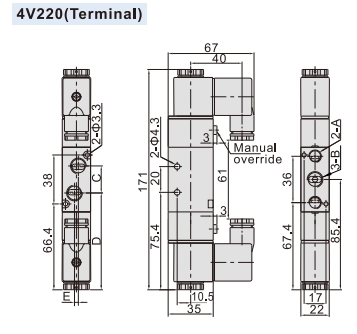

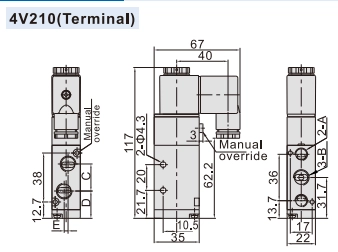

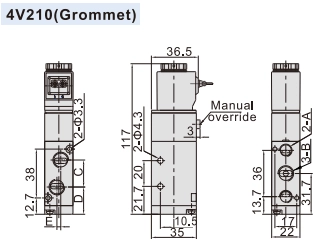

4V200 series Solenoid Valve External specification
